Solar Powered Distillery
2 meter dish
This parabolic solar concentrator dish collects about 3 square meters of sunlight. At 100% efficiency it should produce about 3000 watts of power or 10242 BTU per hour. In actuality it produces about 1873 watts or 6391 BTU per hour. This is a system efficiency of about 62%.
Ambient temp 65?F
83 pounds of water (Aabout 10 gallons)
1 BTU raises 1 pound of water 1?F
77?F change of 83 pounds of water = 6391 BTU
BTU / hour to Watts = BTU / hour x 0.293
Watt-hours to BTU = Watts x 3.414
1873 actual watts / 3000 potential watts = 62.4% efficiency

1873 watts of solar thermonuclear radiation was being collected at the focal point by the collector coil.

Time Temp ?F Temp rise BTU
12:00 pm 48
12:15 pm 65 17 1411
12:30 pm 85 20 1660
12:45 pm 105 20 1660
1:00 pm 125 20 1660
    Total BTU 6391

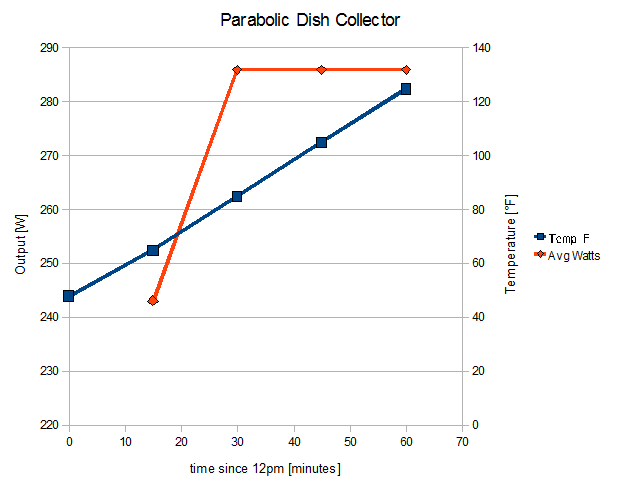

Output Graph







Justin

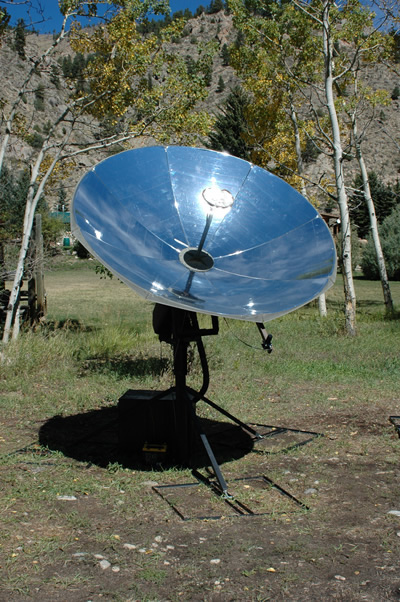

This solar concentrator is an eight segment solid aluminum parabolic dish. The surface of the dish was washed and then adhesive mylar was applied in 3" wide strips. We started from the outside of each segment and worked toward the center. This method seemed to produce the least amount of material overlap.

We tried applying the mylar several different ways but found that 3" wide strips were easiest to manage. It was faster and less tedious to keep air bubbles from getting trapped under the reflective when applying strips as opposed to larger pie shaped sections. Larger pie sections also tended to wrinkle a few hours after application, this was not so with the strips.

The weatherability of this mylar material is unknown. At the time of this photograph the mylar had been on the dish for about a month.

The Heliotrack mascot is pictured here for scale.



Justin

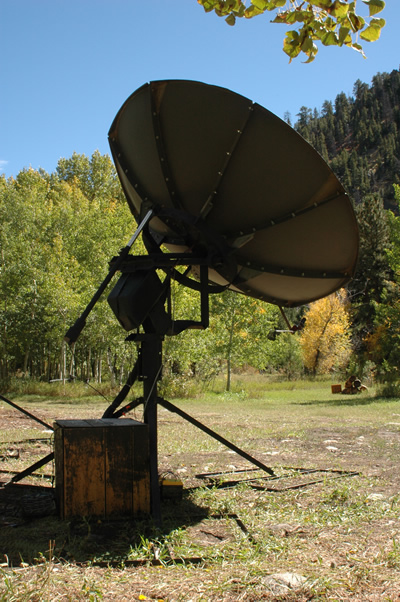

The original stand for this dish was single axis with an 18" linear actuator.

A new two axis mounting frame was constructed from recycled angle iron. The first axis from ground is a horizon to horizon rotary actuator that provides 170? of azimuth motion. The second axis from ground is the original 18" linear actuator that now provides 90? of altitude adjustment.

The linear actuator does very little work since the azimuth actuator can be aligned with the polar axis of the Earth, it primarily provides seasonal adjustment and makes only slight adjustments a few times per day.

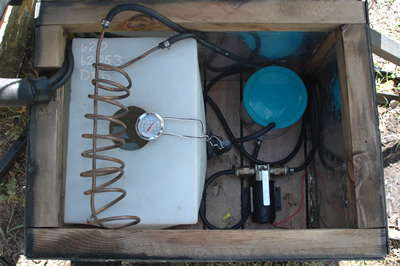

In this picture you can see the insulated box containing the storage tank and circulation pump.



Justin
The CSP collector element is a 10" diameter spiral coil of 3/8" soft copper tube. To absorb more energy it has painted with high temperature black B-B-Q paint purchased from Home Depot. Water, antifreeze, or mineral oil is circulated through the collector coil and then through another copper heat exchange coil in the holding tank or boiler.

The white fiberglass insulation on the back of the coil is there to reduced re-radiation and convection losses.



Justin
The tank heating element is a coil of 1/4"copper tube. The temperature difference between the inlet and outlet of the cooling coil is 40?F at a circulation volume of .3 gallons per minute.

It is imperative that this system has some means of pressure relief. At some point the transfer fluid will flash into steam causing pressure buildup in the system.

It is possible to get a constant flow of steam by using a positive displacement feed pump adjusted to the proper flow rate. This is what we do when we distill water.
